AGB Air Ground Block / Parts & Maintenance
Air Ground Block Home / Create a Part Number
Parts
| AGB Parts | Description | Part Number | MTTR | Tools |
|---|---|---|---|---|
 | Seal Kit | AGBRBK | 30 mins. | vise, 1/4 drive torque wrench, 10mm socket, seal picks |

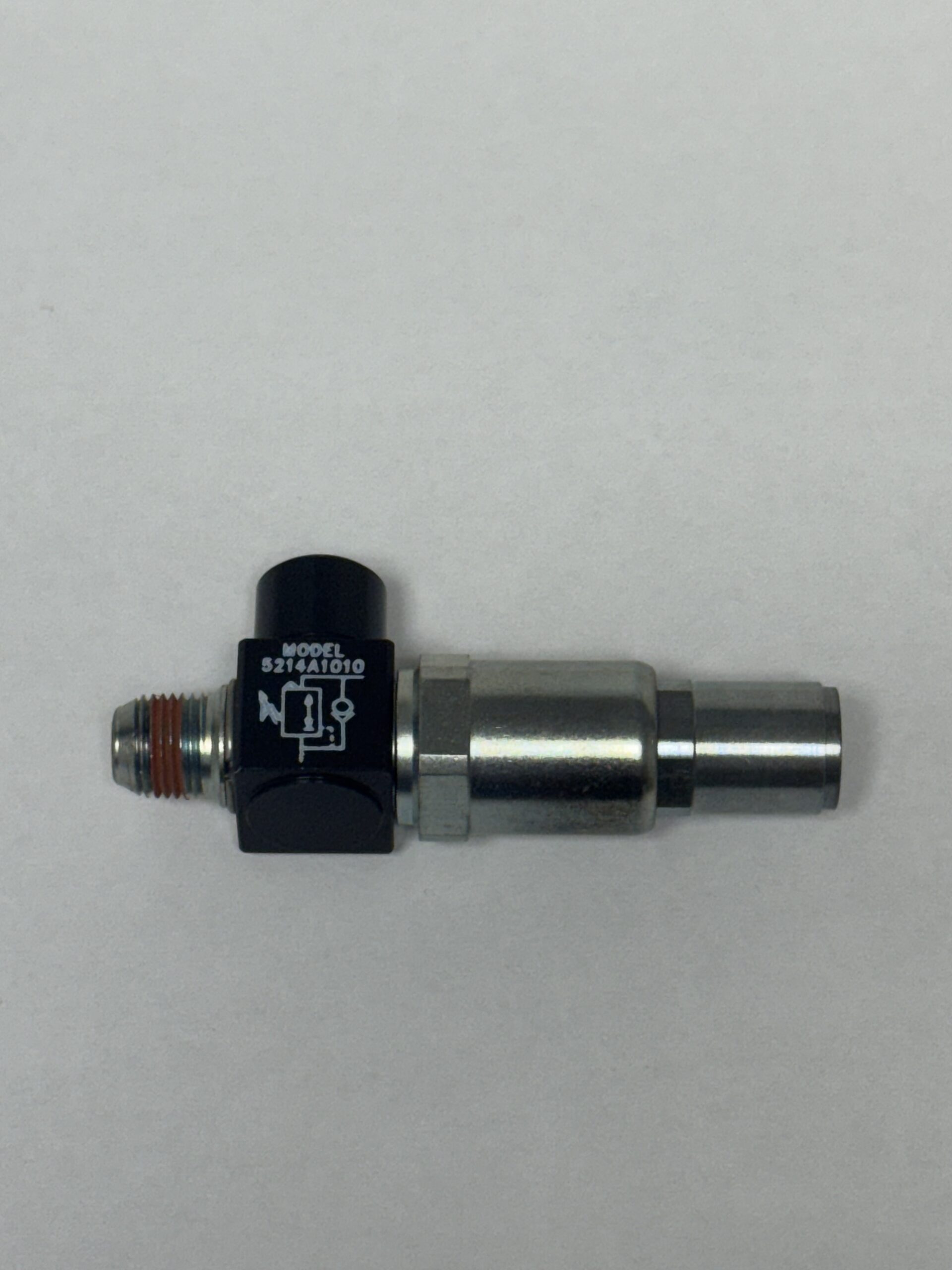

 | Regulator | AVD7209-108 | 30 mins. | adjustable wrench, seal tape |

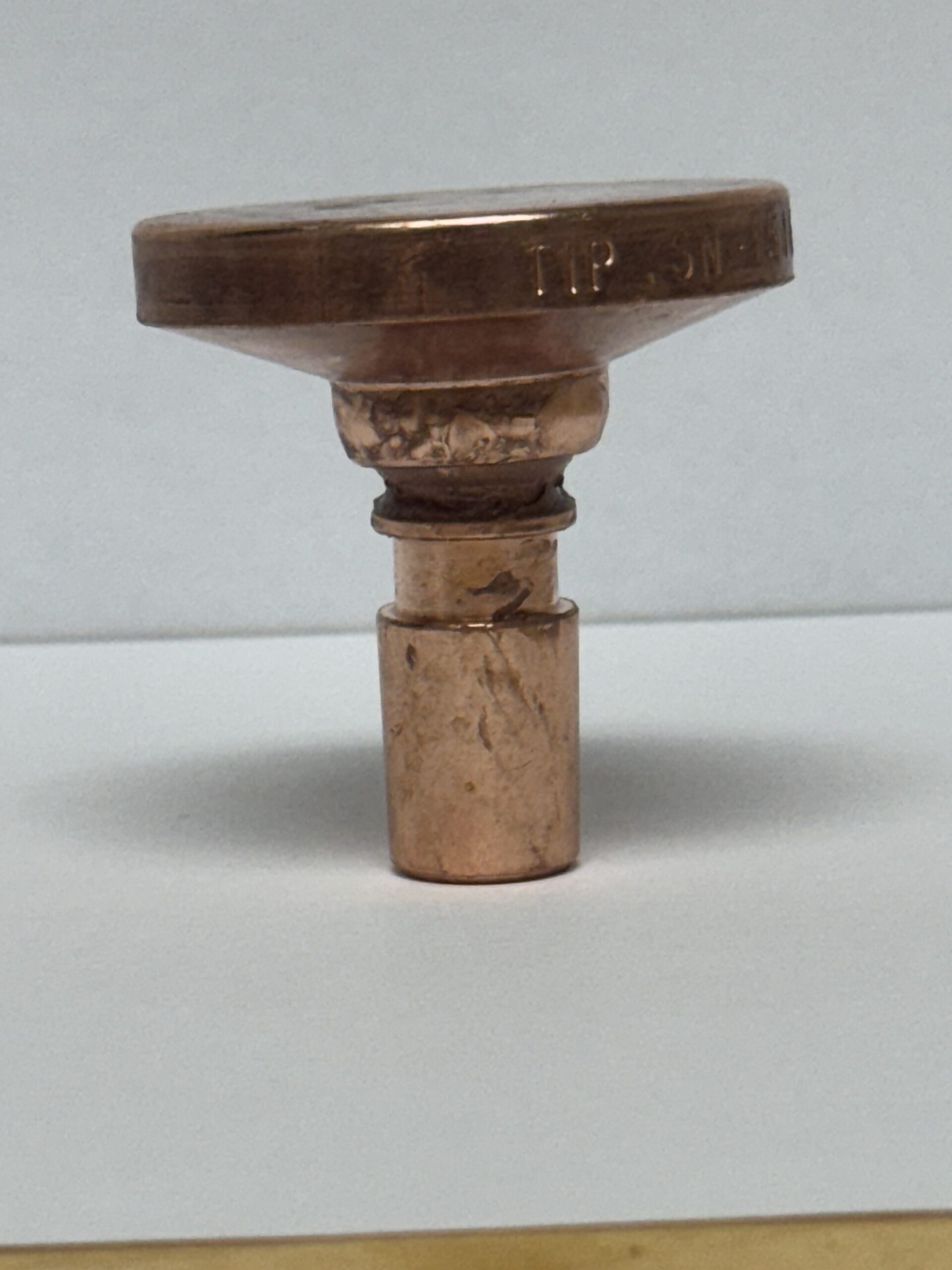

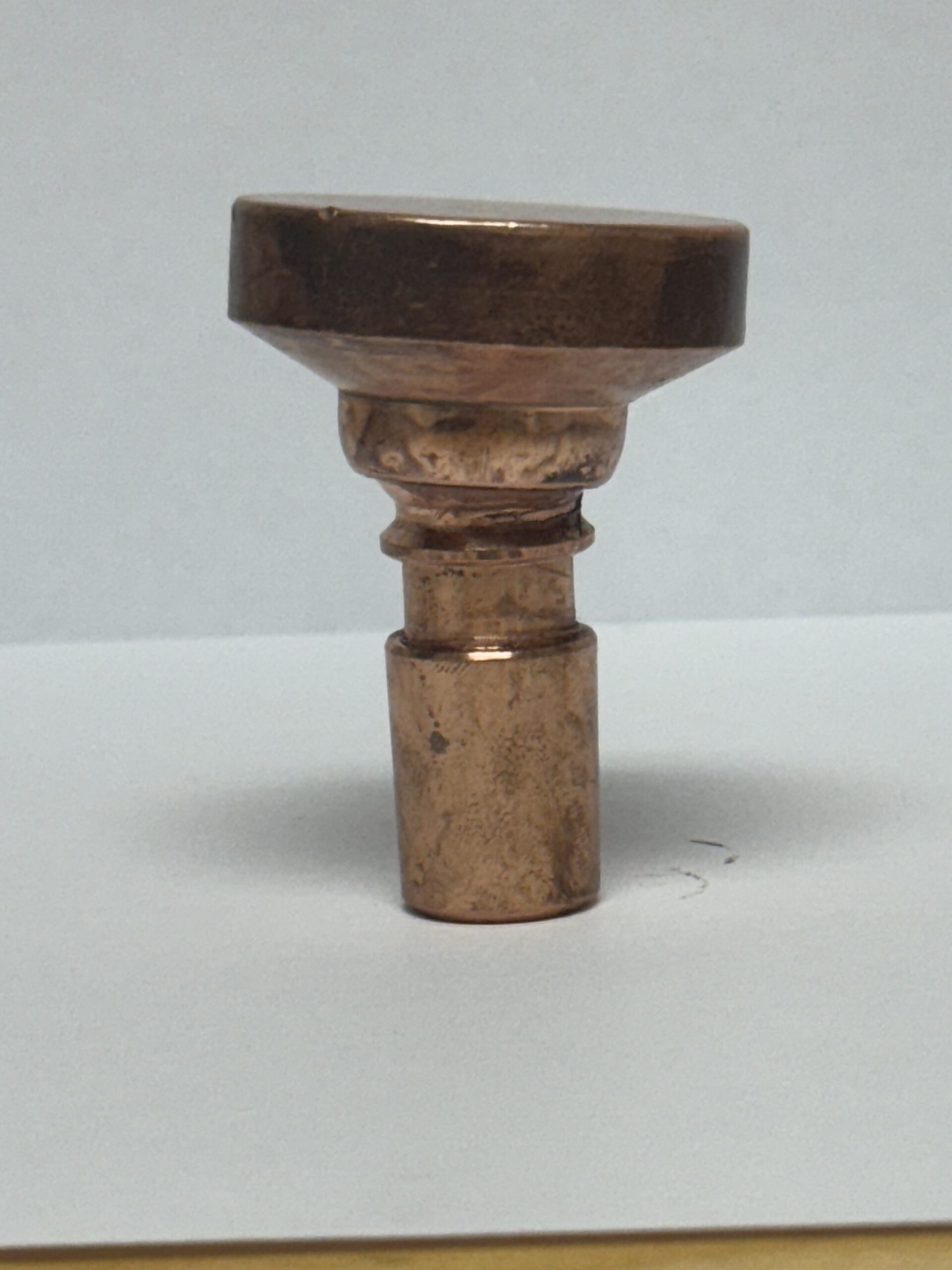

 | Swivel Tip 25 | GB Tip 25 | 10 mins. | adjustable wrench, channel locks or vise grip / can be done on tool |
 | Swivel Tip 38 | GB Tip 38 | 10 mins. | adjustable wrench, channel locks or vise grip / can be done on tool |
 | Swivel Tip 50 | GB Tip 50 | 10 mins. | adjustable wrench, channel locks or vise grip / can be done on tool |
 | Switch | MZT8-2V8PSWKQT | 5 mins. | 1.5mm hex or small flat screwdriver. 1/4 turn lock / unlock press down while locking. |
| AGB BOLT TORQUE CHART | TORQUE | ||||
|---|---|---|---|---|---|
| Bolt Description | Quantity | Size | IN LB | NM | Tools |
| Cylinder Tie Rod Bolt | 4 | M-6 x 110 | 90 | 10 | 1.5 hex |
